The Compound Builder module creates compound signatures so that
you can identify and quantify your own custom compounds.
Add your newly created compound signatures
(.xcpd
) to the compound library
using Library Manager. Once in the library, these custom
compouds can be used to profile spectra in Profiler.
For a hands-on introduction to Compound Builder, see “Tutorial and Sample Files”.

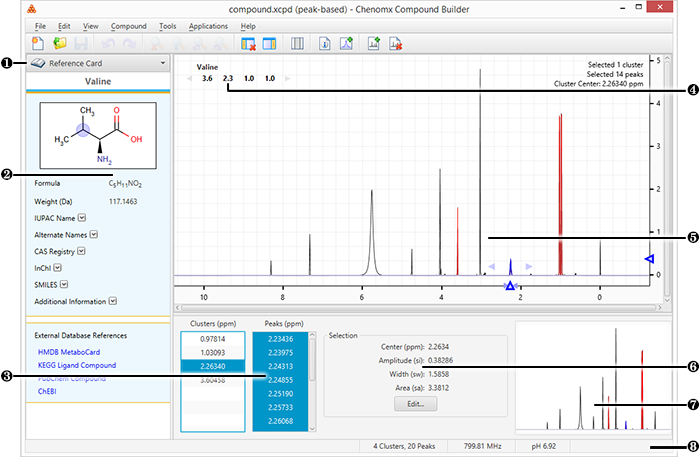

![Image of the Compound Builder main window](images/customizer/customizer.overview.small.png)
Sidebar View Dropdown Menu changes the currently visible Sidebar view. |
|
Reference Card Panel displays additional information for the compound indicated by the Chenomx Compound ID in the Compound Details, including structure, molecular weight, CAS-RN and so on. |
|
Cluster and Peak Lists edits, selects or removes clusters or peaks in the currently open compound. Also defines new clusters based on the currently selected peaks or clusters. |
|
Cluster Navigator navigates among the clusters of the currently open compound. Enable or disable the Cluster Navigator using the View menu. |
|
Spectrum Graph displays the spectrum as well as the sum line and the currently selected cluster(s) or peak(s). |
|
Information Panel displays information relating to the currently selected cluster(s) and peak(s). |
|
Spectrum Thumbnail displays a thumbnail image of the Spectrum View. The thumbnail can also be used to navigate the spectrum at various zoom settings. |
|
Status Bar displays the current cursor position in the units specified by the View > X Scale and View > Y Scale settings. Also displays information about recent user actions. |
